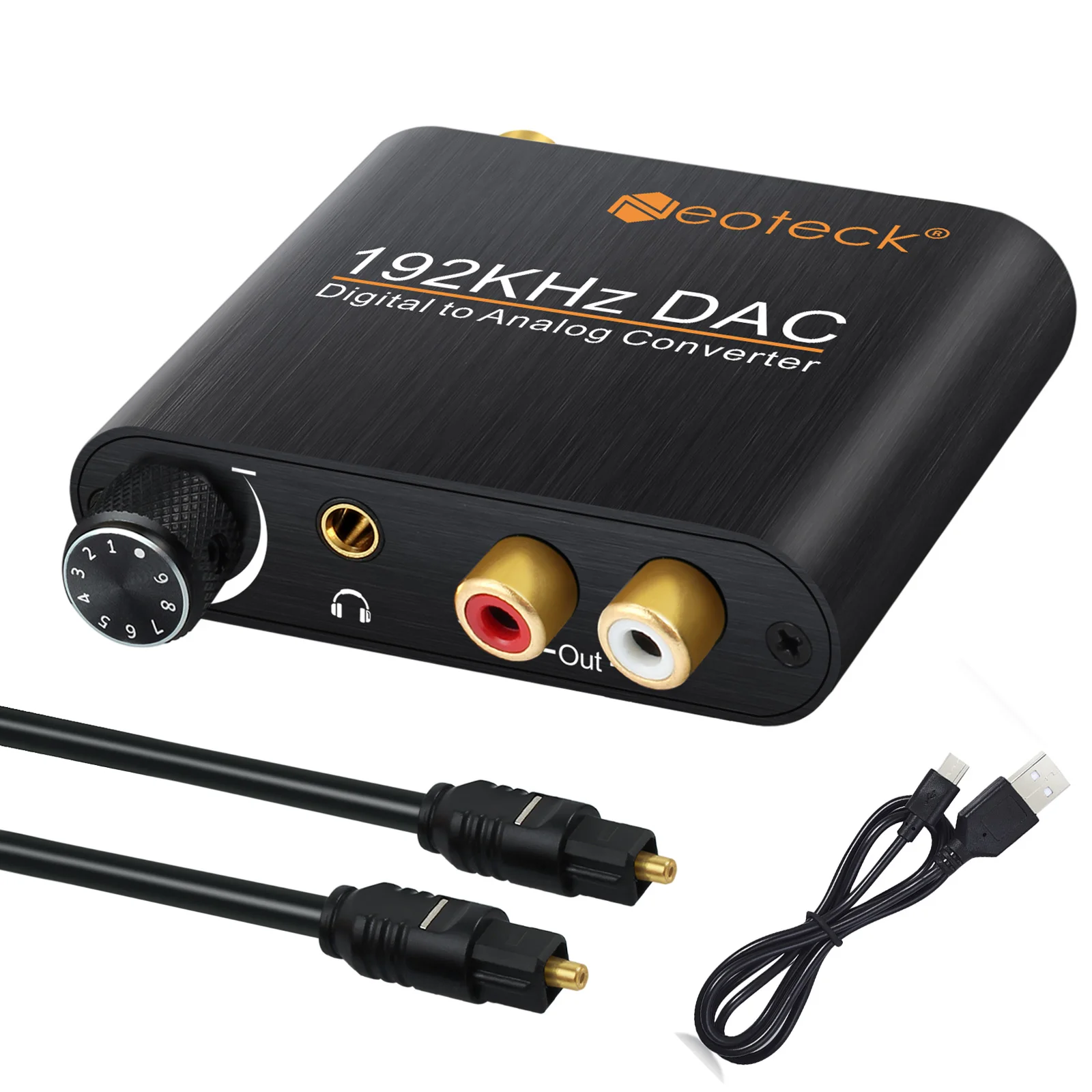

Digital to analog converter with volume control and 3.5 mm jack

By Neoteck

Features and specifications:

Key features:
One Toslink and one coaxial input interface: Connect to DVD, HD players and other devices.
One RCA output interface: Connect to audio amplification devices with RCA interface.
One 3.5 mm audio output interface: Connect to headphones.
Eliminates noise with no input signal and automatically mutes when non-audio signal.
Supports sampling rate at 192 kHz 24-bit
Supports volume adjustment
Aluminum Metal case,lightweight and compact. Good anti-interference function makes sound pure and clear.

Specifications:
Supported audio format: PCM
Signal-to-noise ratio: 105 db
Separating degree(1KHZ): 94 db
Response frequency : 20 Hz ~ 20 KHz -0.2 db
THD+N : -90 db
Total harmonic distortion (THD): 10 Hz ~ 20 KHz 0.25-0.065%
Blocking time : 0.577Fs
Sampling rate : 32~192 KHz
Bit Rate : 16~24 Bit
Input electrical level : ±0.3 V
Output electrical level : 3 V
Maximum output power : 0.3 W

Earphone output power : 0-250 mW
Output impedance : 10 ohms
Working voltage : +5 V, Maximum voltage: 6 V
Maximum power consumption : 100 mA
Operating temperature range : -10-70℃
Storage temperature range : -60-150℃
Operating humidity range : 10% – 80%RH(No condensation)
Storage humidity range : 5- 90%RH(No condensation)
ESD protection human body model : ±8 kV (air-gap discharge)
±4 kV (contact discharge)
Case dimensions : 70 × 55 × 18(mm)
Weight : 45 g
Product shell: Aluminum shell
Product color: Black

Note:
Incompatible with 5.1 channel signals such as Dolby AC3, please set the audio output to PCM or LPCM before using product; this product does not support Youtube audio.

Showcase

Professional audio amplifier chip and volume adjustment switch designed for headphone use with adjustable output volume.

Product details

This converter is designed for professional audio signal processing.
It can easily convert coaxial or Toslink interface to RCA analog audio interface and 3.5 mm headphone jack

Reasons to choose us

1. Complete configuration, optical cable + USB cable

2. Volume control knob

Use control knob to adjust volume for clear and pure sound

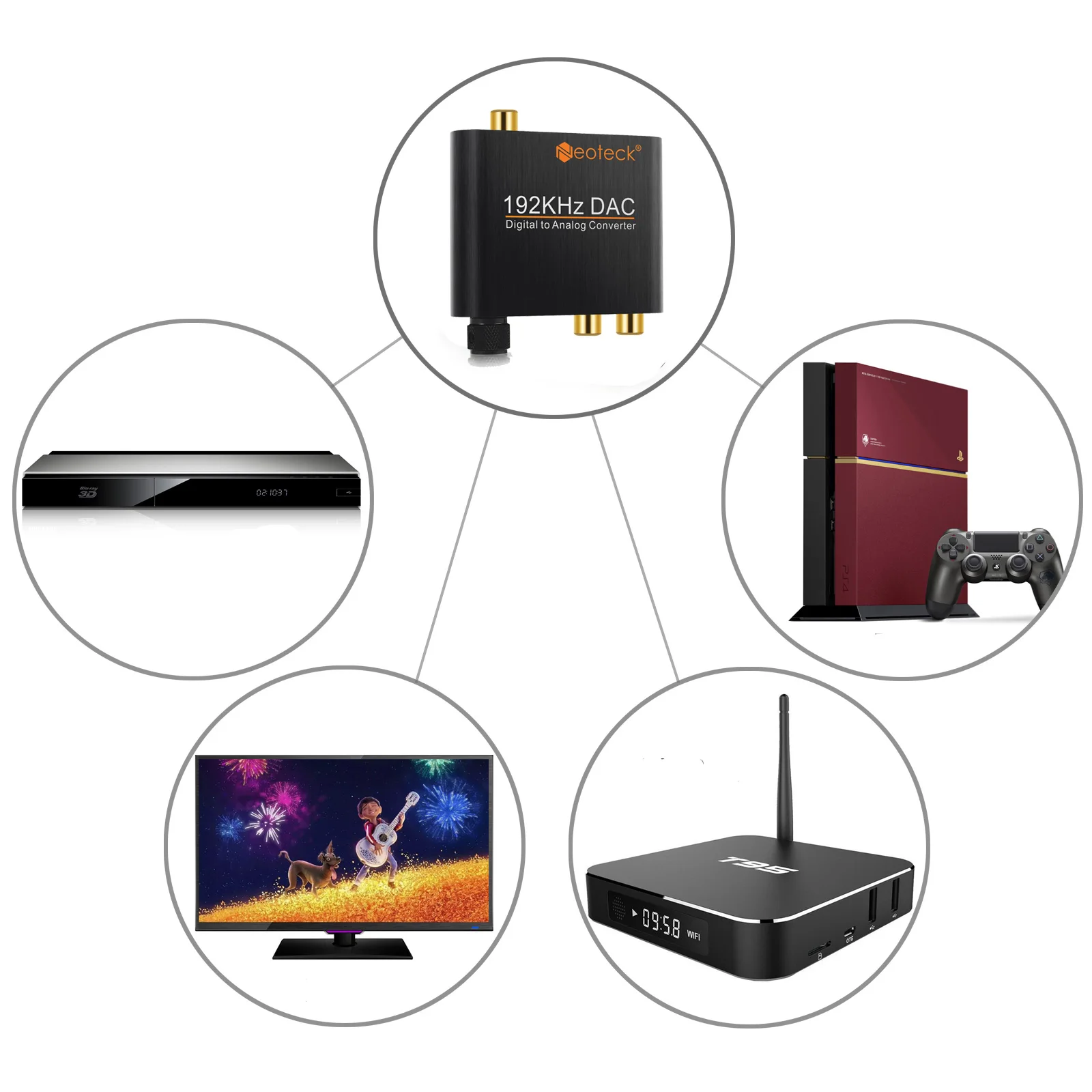

3. Wide application

For HDTV, Blu Ray DVD, PS4, TV Box, etc.

4. Input interface

One optical and one coaxial interface, one DC 5 V for power supply

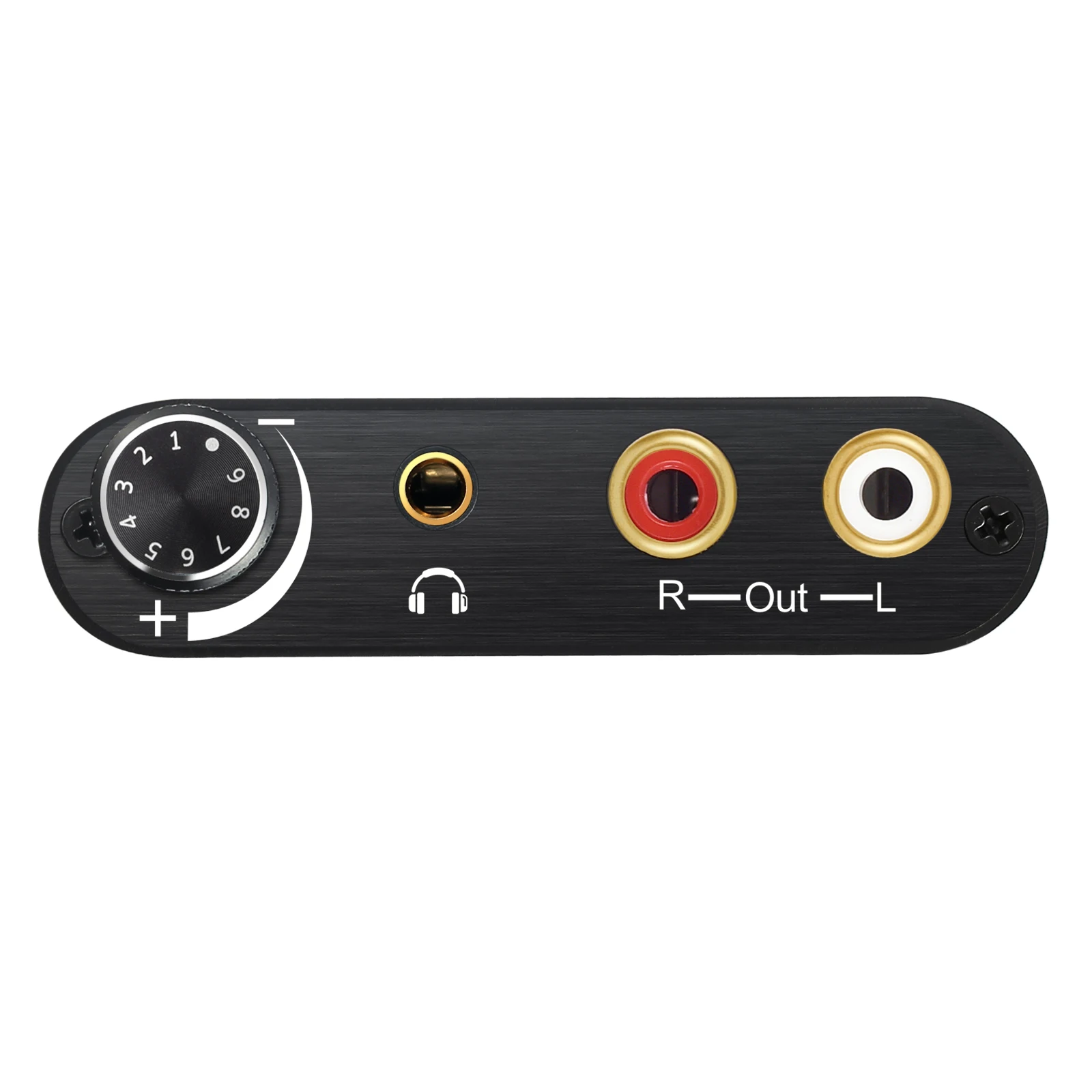

5. Output interface

RCA and one 3.5 mm jack output with one volume control knob

Photos from our customers

Buyer’s showcase

DAC converter

Application

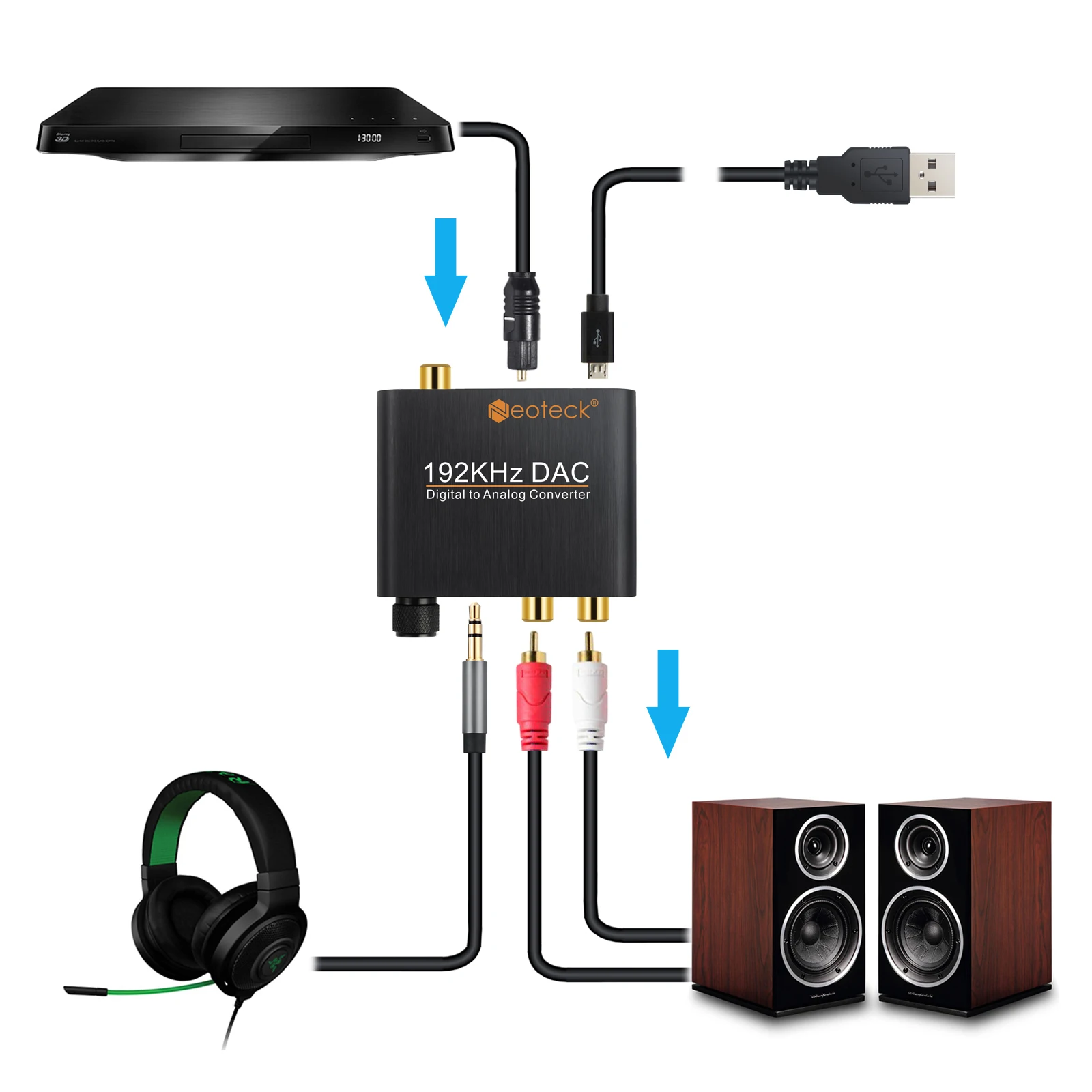

Convert coaxial or Toslink to RCA or 3.5 mm headphones

Full product set
